Pneumatic rope balancers

Our pneumatic rope balancers are suitable for positioning loads with great sensitivity and for completing complex joining and assembly tasks. The payloads are equipped with rope drums that utilize compressed air to suspend and balance payloads on the rope, allowing operators to position payloads with high levels of precision.

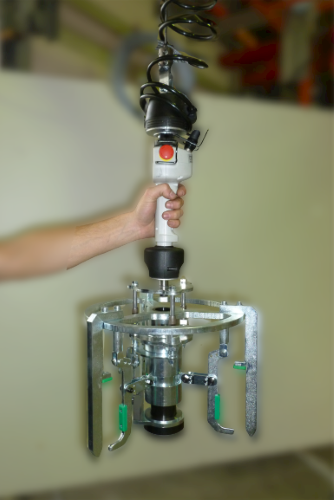

Application examples







Technical specifications

Design variations

  • ceiling-mounted and traversable in a suspension crane or rail system

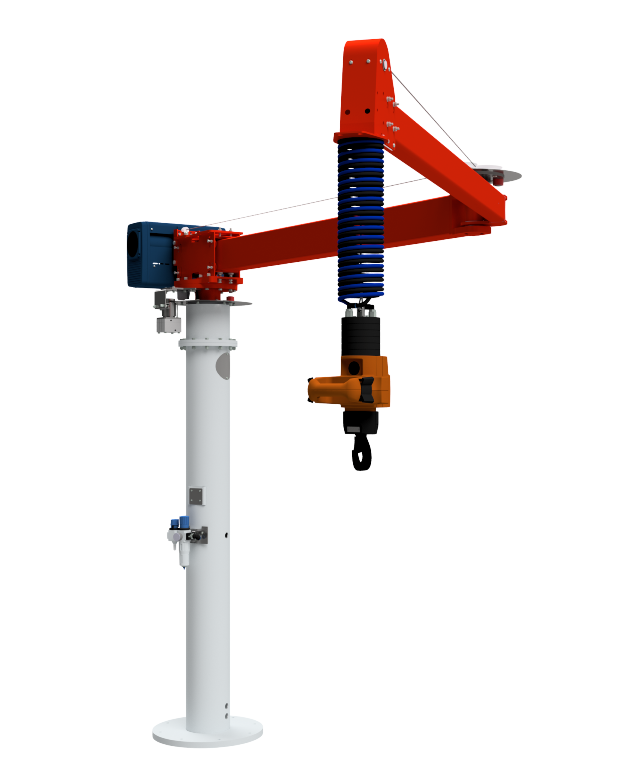

  • floor-mounted, with a pivot arm or slewing crane


Control options

  • one, two, or multiple load balancing control
  • up/down control, with and without no-load balancing
  • intuitive hand force detection
  • safety features, such as gripper safety release

Features / Benefits

  • precise and smooth positioning of loads
  • intuitive hand- guidance
  • fast transfer of loads with short cycle times
  • compact design, control, and drive all in one housing
  • speed limiter safely preventing unacceptable lifting speeds
*With pressure of 6 bars
Basic unit Load capacity [kg] Stroke [mm] Lifting speed [m/min]
Z-BP 100* 2000 0-60
